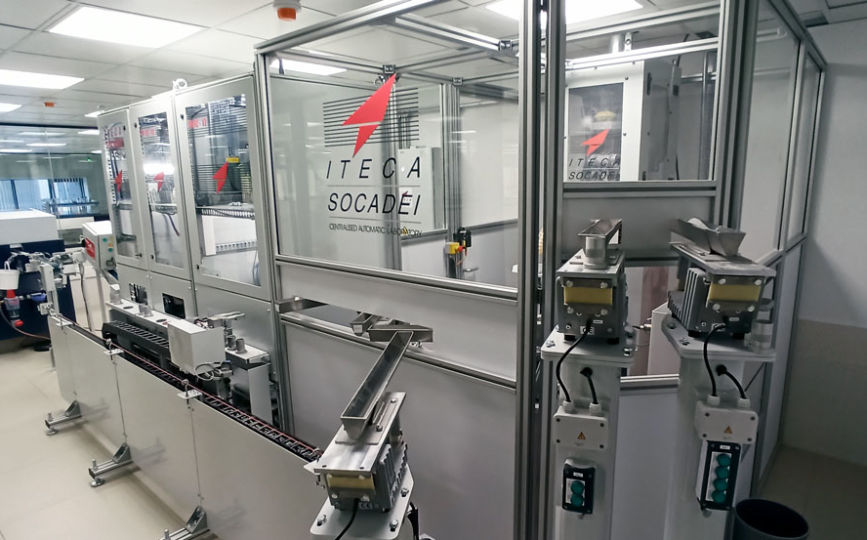

Set of devices specially designed to ensure the automatic control of all kinds of powdery samples found in cement plants

Our tailor-made solution includes the sampling, transport, preparation and analysis of the samples as well as the Automation and Supervision of the whole set-up

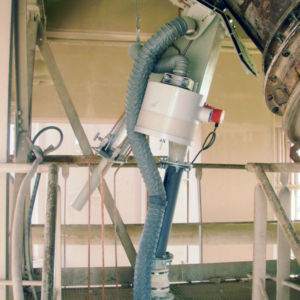

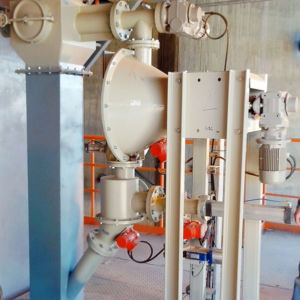

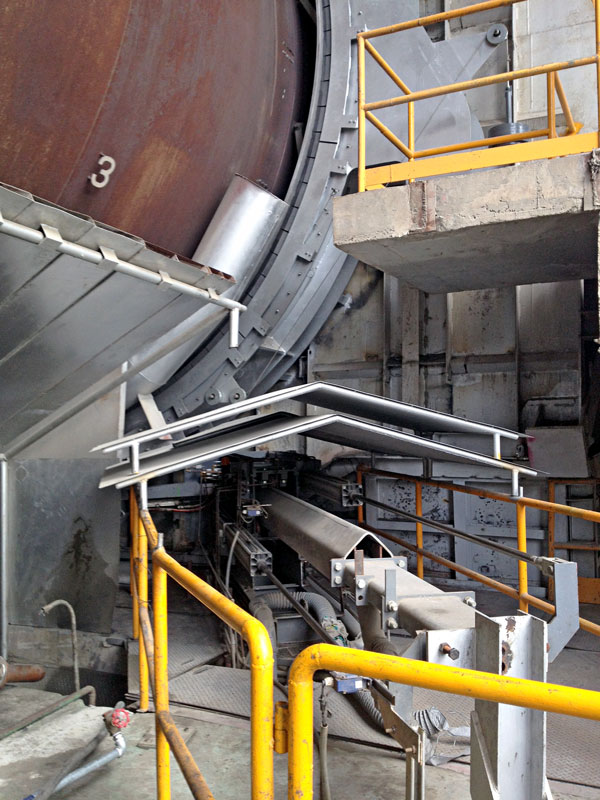

A particular attention is paid to the representativeness and reliability of the sampling systems

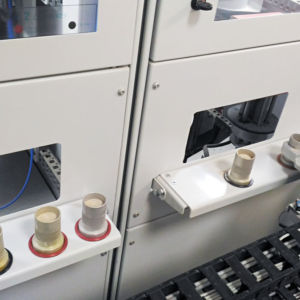

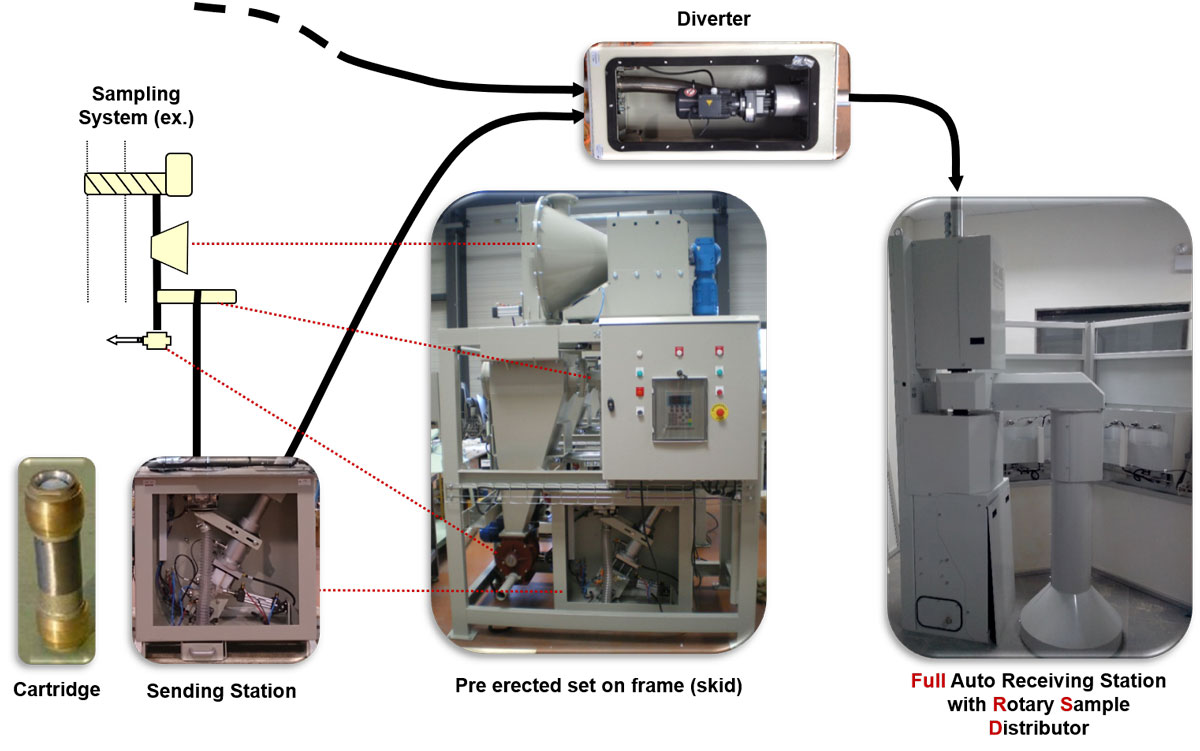

Sample transport by cartridge over long distances (> 1 km).

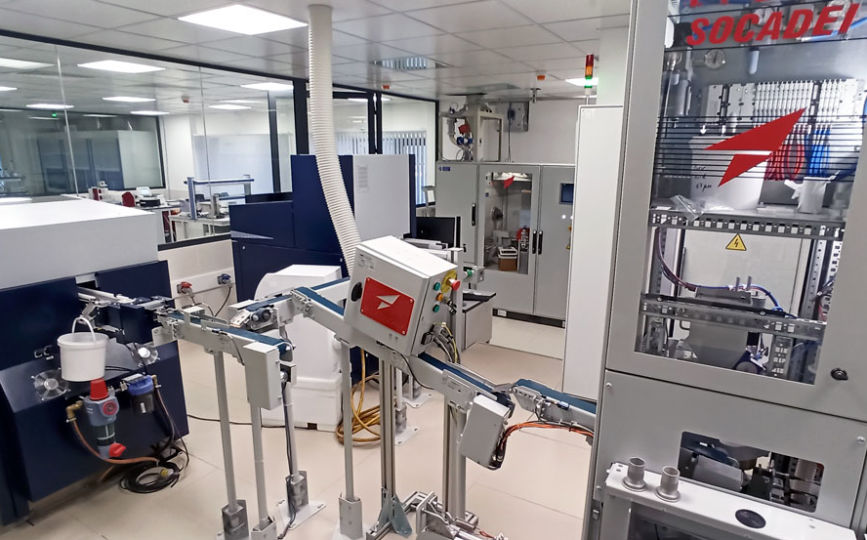

Innovative sample preparation by milling & pressing using boric acid

Possibility to integrate :

• any type of XRF/XRD spectrometer

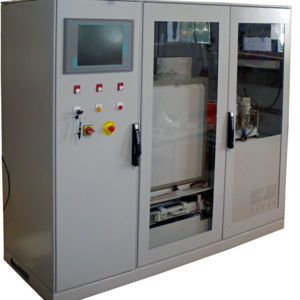

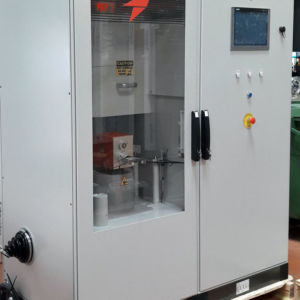

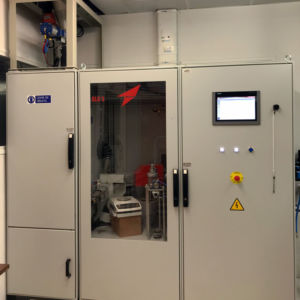

• our analysers: Free Lime, Carbon Sulphur, Loss on Ignition, Particle Sizer and Spectrocolorimeter

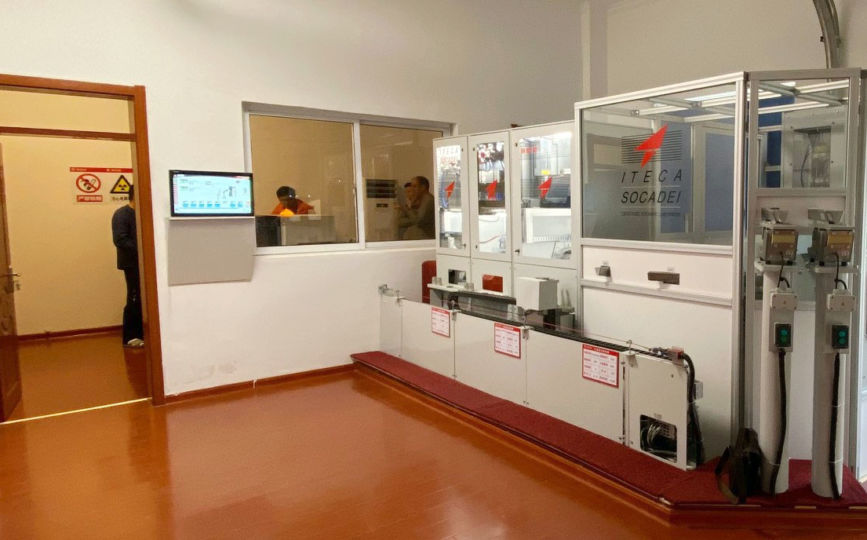

Automatic composition of average samples in a carrousel or in vessels fitted on a pivoting partition

• Modular concept: independent devices with simple operation and easy access to all mechanical and electrical components for servicing
• High throughput: up to 12 cartridges and 10 pellets (1 mill & 1 press) per hour
• Possible combination of on-line & centralized analysis enabling to increase frequencies and enlarge the possibilities of control (free lime + XRD, Loss on Ignition + XRF…)
• 100% Siemens TIA PLC based operation: guarantee of reliability
• User-friendly supervision system under TIA Portal
• Possibility of connection to any type of database (SQL, Oracle…) or LIMS
